Installing Your SkyBell Doorbell Camera

Watch our 5-minute video tutorial before installing your camera!

play

What You’ll Need

Included in Your Package

Skybell Doorbell Camera

Skybell Doorbell Camera

Mounting Plate

Mounting Plateincludes terminal screws and set screws

2 Mounting Screws

2 Mounting Screws

1 Spare Set Screw

1 Spare Set Screw

2 Wall Anchors

2 Wall Anchors

Tools You'll Need (Optional)

Screwdriver

Screwdriver

6mm or 1/4 inch Drill Bit

6mm or 1/4 inch Drill Bit

Drill

Drill

warning
Warning

Do not lose the small set screw at the bottom of the mounting plate, as the doorbell camera will not work without this screw in place.

Before We Get Started

Mounting Process for Mechanical Doorbell

If you have a digital doorbell, you’ll need to purchase the digital doorbell adapter before you install your camera. You can purchase the digital doorbell adapter through your customer portal.

Once you have your doorbell adapter, you’ll be ready to go!

Step 1

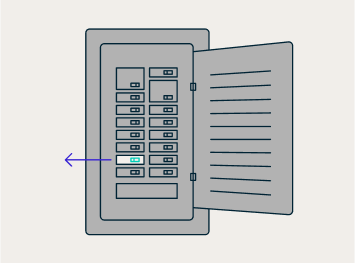

Go to your home’s breaker box. Turn off the breaker that powers your doorbell.

Step 2

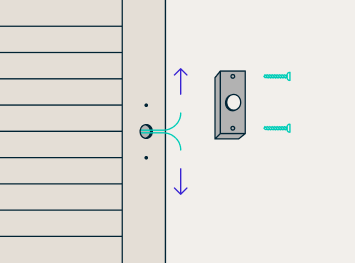

Unscrew and remove your existing doorbell. Disconnect the two wires from the doorbell and leave them exposed and separated, as they will connect to your new doorbell camera. To keep the wires from disappearing into your wall, you may consider bending them to hold them in place.

Step 3

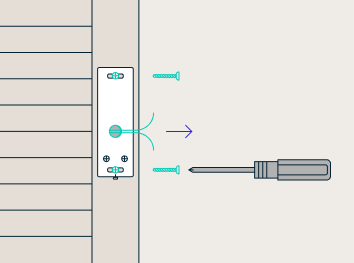

Pull the two wires through the hole in the middle of the mounting plate. Be careful not to allow the wires to cross! Screw the mounting plate to the wall (where your doorbell was previously) using the provided mounting screws. You may need to drill new holes to line up with the mounting plate exactly using a 1/4 inch drill bit.

Step 4

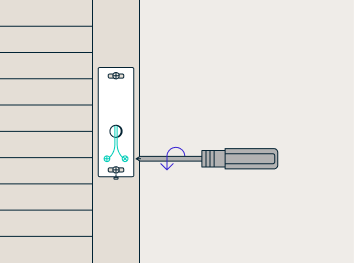

Loosen the two small terminal screws slightly to allow for the ends of the wires to pass underneath. Insert one wire under each screw and tighten. Give each wire a slight tug to be sure each is secure. Tuck in any excess wire behind the mounting plate.

Step 5

Secure your camera in place by first locating the lip on the top of the camera, then lining it up with the corresponding grooves on the mounting plate. Snap the bottom of the camera into place.

Step 6

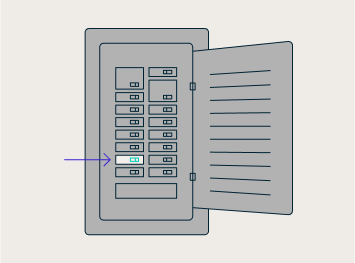

Turn your doorbell power back on (from your breaker box).

Step 7

Tighten the small set screw on the bottom of the mounting plate. Be careful not to over-tighten it. The LED indicator light should begin flashing red and blue if the camera is attached correctly. If the LED light does not turn on, you may need to remove the camera and ensure the wires are attached correctly.

Step 8

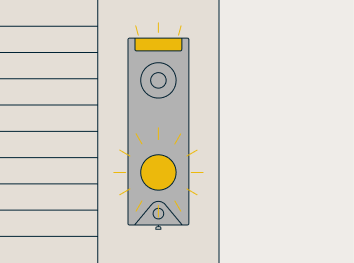

Allow 15 minutes for the doorbell camera to charge before syncing to the Cove app. Once the doorbell camera is charged, the indicator light should turn solid yellow. If 15 minutes have passed and the indicator light is still flashing red and blue, please call our customer service team.

Pairing Your Doorbell Camera

Step 1

Download the Cove app from the Google Play Store or App Store. Log into the app.

Step 2

Follow the in-app instructions.

Step 3

Monitor your doorbell camera from your phone!

Want to Adjust the View?

If you’d like to change the viewing angle for your SkyBell camera, you can purchase an angled mounting plate through your customer portal below!

LED Indicator Light Status

Open Light IndicatorsClose Light Indicators

Red/Blue alternating

Battery is charging (10-15 mins)

Yellow solid (not flashing)

System startup mode

Red/Green alternating

Wi-Fi syncing

Orange flashing

Wi-Fi not connected

Blue/Green alternating

Connected to Wi-Fi, waiting for SkyBell HD server connection

Green solid

Ready to use

White solid

Call in progress

Blue/Yellow alternating

Firmware update in progress

Blue flashing

Power cycle. HOLD button for 45 seconds. LED will flash to show reset in progress.
